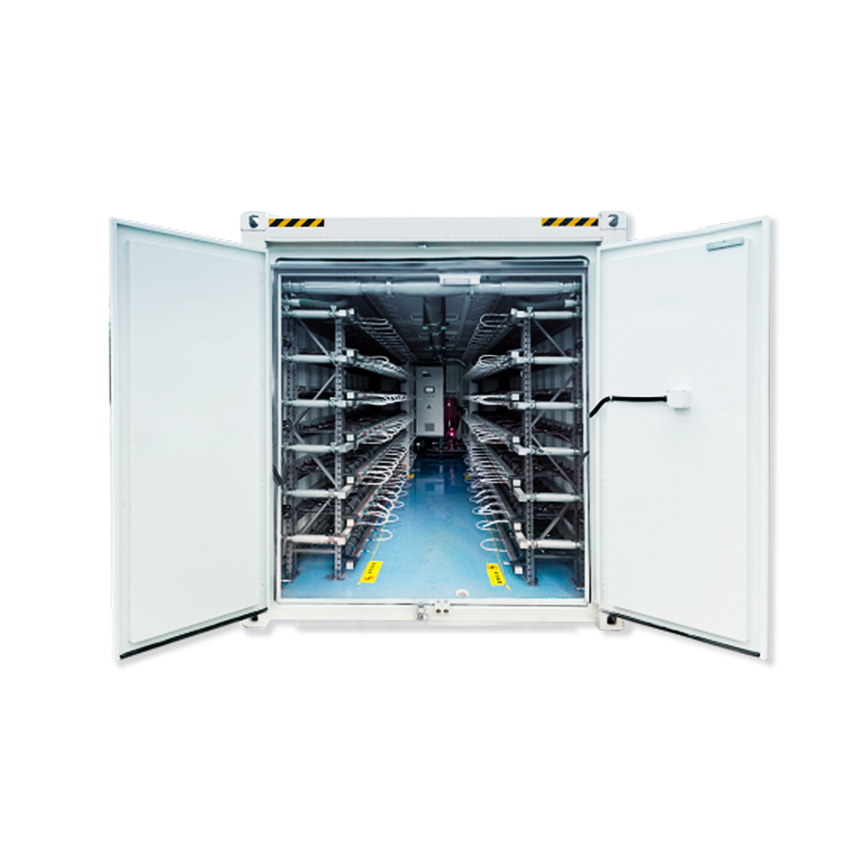

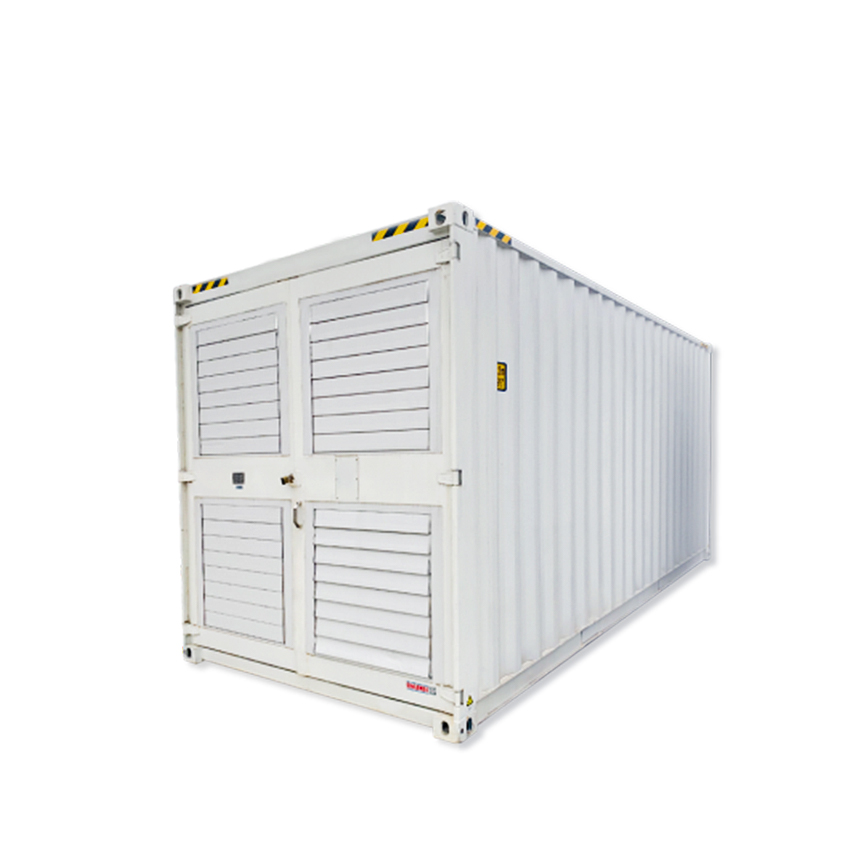

蚂蚁水冷矿箱

蚂蚁矿箱 HK3负荷1030KW 拥有210个机位
描述
描述
产品参数
型号 ANTSPACE HK3
尺寸 (L*W*H) (mm) 6058*2438*2896
矿箱容量 210  -S19 水冷矿机
矿箱证书 中国船级社认证
安全证书 北美:NFPA 79:2021UL 508A:2018 R8.21
CSA C22.2 No. 14-18
ANSI/ISO 12100:2012
欧盟:EN ISO 12100EN 60204-1
运行功率(kW) 1047~1050
PUE(电源使用效率) 1.022(不包含水塔)/1.036(包含水塔)
输入电压和频率 415V±5% 60Hz(North America)
400V±5% 50Hz(EU
Middle East)
详细特征
发货重量(T) 8
运行重量(T) 12
配电柜主开关(A) 1200(北美)
1250(
欧盟、中东)
额定电流(A) 952
标准功率(kW) 1049
最大功率(kW) 1050
每台矿机的额定电流(A) 10
进线电缆 进线电缆可承受600V以上高压,每相要求如下:
L1
单芯电缆 600kcMil(300mm²)x4
L2
单芯电缆 600kcMil(300mm²)x4
L3
单芯电缆 600kcMil(300mm²)x4
N
单芯电缆 600kcMil(300mm²)x4
PE
单芯电缆 500kcMil(240mm²)x2
连接接口(水塔) DN125(GB/T 9119-2010 PN16 DN125)
连接接口(板式换热接口) DN100(GB/T 9119-2010 PN16 DN100)
流速(m³/h) 85
由一台 2500kVA 变压器供电的 ANTSPACE 数量 2
干湿塔规格细节
可根据个性化需求选择以下两种干湿塔之一
产品概述
类型 干湿塔传统型 DWT-T 干湿塔矿箱型 DWT-C
尺寸(L*W*H)(mm) 5800*2240*4200 6058*2438*2896
散热能力(KW) 1000 1000
出口温度 @ 28 水泵温度 35 35
集装箱认证 中国船级社认证
安全证书 北美: NFPA 79:2021, UL 508A:2018 R8.21, 北美: NFPA 79:2021, UL 508A:2018 R8.21,
CSA C22.2 No. 14-18, ANSI/ISO 12100:2012 CSA C22.2 No. 14-18, ANSI/ISO 12100:2012
欧盟: EN ISO 12100, EN 60204-1 欧盟: EN ISO 12100, EN 60204-1
工作功率(kW) 14~28 14~28
电机额定电压和频率 415V±5% 60Hz(北美) 415V±5% 60Hz(北美)
400V±5% 50Hz(欧盟、中东) 400V±5% 50Hz(欧盟、中东)
详细特征
发货重量(T) 5 6
工作重量(T 9 10
连接接口(矿箱) DN125(GB/T 9119-2010 PN16 DN125) DN125(GB/T 9119-2010 PN16 DN125)
补水管接口 DN40(内螺纹) DN40(内螺纹)
排水管接口 DN65(内螺纹) DN65(内螺纹)
噪音等级 @25, 16m 70dBA 70dBA
用水量(m³/h) 1~1.5 1~1.5
